| Artikelnummer | 204358 |
|---|
Nutzen Sie unseren kompetenten Prüf-, Reparatur- und Wartungsservice für die jährlich vorgeschriebenen Prüfungen!
| Name | WLL in t | T in mm | A in mm | Anzugsmoment in Nm | B in mm | C in mm | D in mm | E in mm | F in mm | G in mm | Gewinde M | H in mm | I in mm | K in mm | L in mm | N in mm | Gewicht/Stk in kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

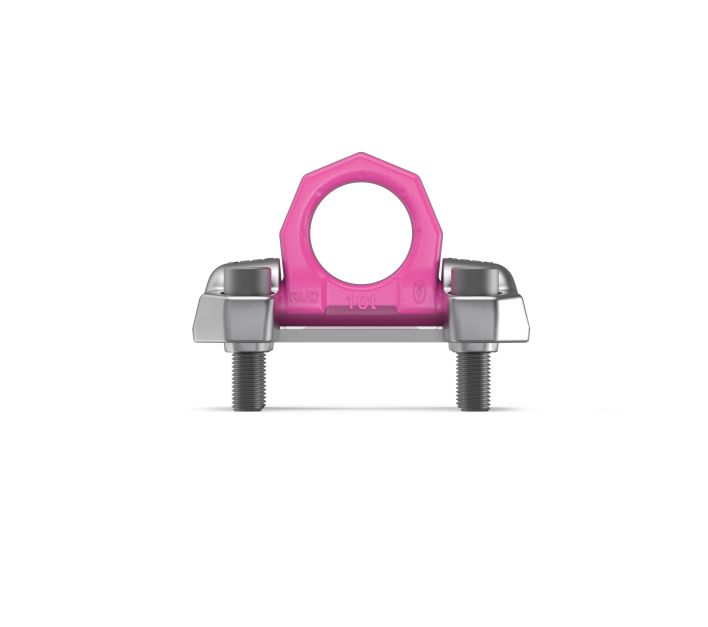

| VRBG 10 | 10 | 103 | 125 | 300 | 22 | 6 | 65 | 143 | 78 | 8 | 4xM20 | 30 | 50 | 43 | 213 | 100 | 5,43 |
| VRBG 16 | 16 | 131 | 170 | 600 | 30 | 8 | 90 | 198 | 104 | 10 | 4xM30 | 46 | 70 | 63 | 270 | 134 | 11,37 |
| VRBG 31,5 t | 31,5 | 265 | 180 | 900 | 42 | 42 | 130 | 75 | 120 | - | 6xM30 | - | - | 46 | 400 | 195 | 66,35 |
| VRBG-FIX-31,5 t | 31,5 | 288 | 180 | 900 | 42 | 42 | 130 | 75 | 120 | - | 6xM30 | - | - | 46 | 400 | 195 | 66,35 |
| VRBG-FIX-50 t | 50 | 430 | 270 | 1000 | 70 | 55 | 230 | 100 | 200 | - | 8xM36 | - | - | 60 | 650 | 335 | 204 |
| Name | Artikelnr. | WLL in t | T in mm | Downloads | Angebot anfordern |
|---|---|---|---|---|---|
| VRBG 10 | 7994537 | 10 | 103 | ||
| VRBG 16 | 7993255 | 16 | 131 | ||
| VRBG 31,5 t | 7910387 | 31,5 | 265 | ||
| VRBG-FIX-31,5 t | 7910591 | 31,5 | 288 | ||
| VRBG-FIX-50 t | 7909951 | 50 | 430 |
